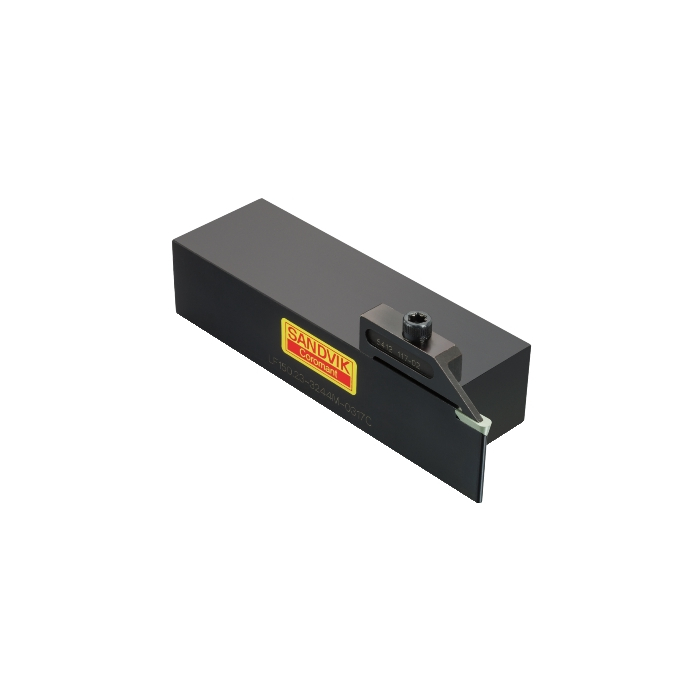

Sandvik Coromant LF150.23-3244M-0317C T-Max™ shank tool for parting and grooving

R 2 990,00 inc. vat
In stock
SKU
5733611
T-Max® shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 150mm
TQ - Torque 3.5Nm
WT - Weight Of Item 1.564kg
OAL - Overall Length 150mm
OHX - Maximum Overhang 59mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 44.2mm
HF - Functional Height 32mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.74mm
H - Shank Height 32mm
CW - Cutting Width 3.175mm
B - Shank Width 44mm
CDX - Cutting Depth Maximum 19mm
ORDCODE LF150.23-3244M-0317C
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A3244_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2021-12-21 05:46:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CA1_1
Hand L
MIID - Master Insert Identification 150.23-0317
SSC - Insert Seat Size Code 1
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
