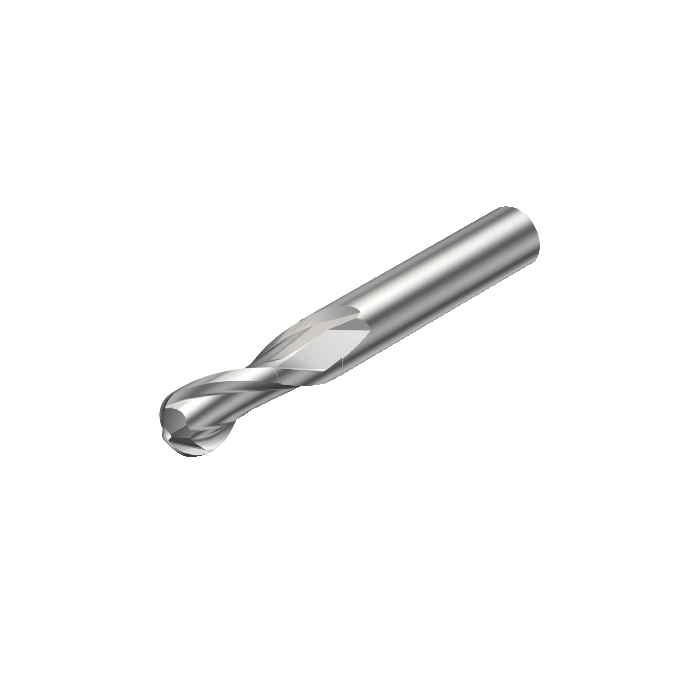

Sandvik Coromant 2B330-0800-NC H10F CoroMill™ Plura solid carbide ball nose end mill for Profiling
Next
Sandvik Coromant 2B330-0500-NC H10F CoroMill™ Plura solid carbide ball nose end mill for Profiling
Previous
![Sandvik Coromant 2B330-0800-NC H10F CoroMill™ Plura solid carbide ball nose end mill for Profiling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/665532b43/sandvik-coromant-2b330-0800-nc-h10f-coromilltm-plura-solid-carbide-ball-nose-end-mill-for-profiling.jpg)
![Sandvik Coromant 2B330-0500-NC H10F CoroMill™ Plura solid carbide ball nose end mill for Profiling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/66551c198/sandvik-coromant-2b330-0500-nc-h10f-coromilltm-plura-solid-carbide-ball-nose-end-mill-for-profiling.jpg)
R 1 593,90
inc. vat
In stock
SKU
6259975
CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 57mm |
BD - Body Diameter | 5.7mm |
LB - Body Length | 18mm |
BHTA - Body Half Taper Angle | 30deg |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.03kg |
OAL - Overall Length | 57mm |
OHX - Maximum Overhang | 21mm |
RMPX - Maximum Ramping Angle | 20deg |
RE - Corner Radius | 3mm |
LU - Usable Length | 17.8mm |
APMX - Depth Of Cut Maximum | 11mm |
DC - Cutting Diameter | 6mm |
DN - Neck Diameter | 5.7mm |
FHA - Flute Helix Angle | 40deg |
GAMF - Radial Rake Angle | 17deg |
GAMP - Axial Rake Angle | 1.5deg |
PSIR - Tool Lead Angle | 0deg |
ULDR - Usable Length Diameter Ratio | 2.966666666667 |
ORDCODE | 2B330-0600-NC H10F |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 05:16:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | H10F |
SUBSTRATE | HF |
CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
