Sandvik Coromant 570-80 17-580-80 570-80 to CoroTurn™ SL quick change adaptor
R 34 527,60
inc. vat
Out of stock
SKU
5765079
570-80 to CoroTurn® SL quick change adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days

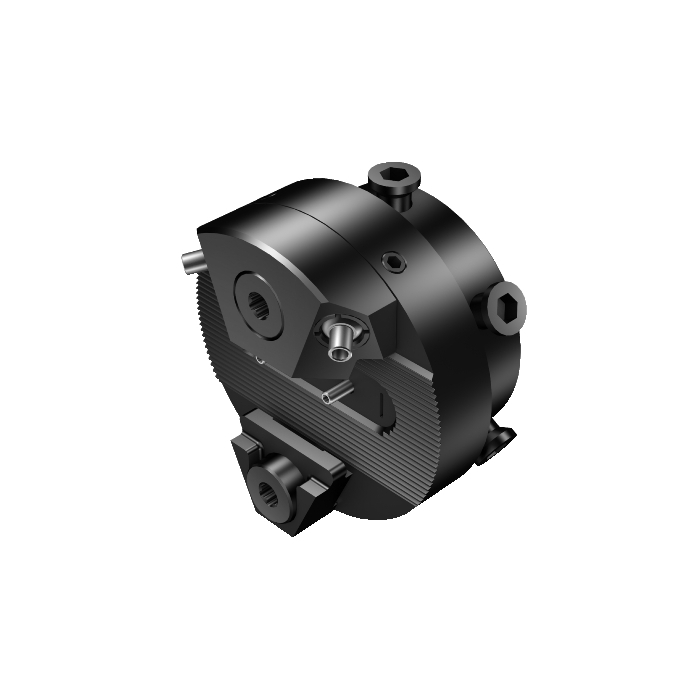

570-80 to CoroTurn® SL quick change adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 80mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 17mm |
| BD - Body Diameter | 80mm |
| LB - Body Length | 17mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 50Nm |
| WT - Weight Of Item | 1.1kg |
| OAL - Overall Length | 52mm |
| OHX - Maximum Overhang | 17mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 32.5mm |
| ADJLN - Minimum Adjustment Limit | 0mm |
| ADJLX - Maximum Adjustment Limit | 19mm |
| ORDCODE | 570-80 17-580-80 |
| ADINTMS - Adaptive Interface Machine Direction | M_BKC01_C0800_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDQ_C0800_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-19 18:06:00.000 |
| Hand | N |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| ADJBY - Adjustability | True |
