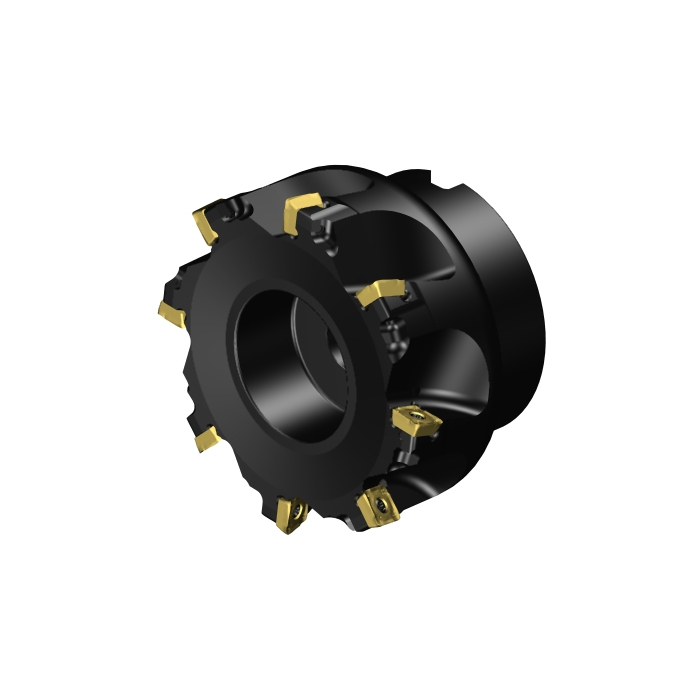

Sandvik Coromant A490-080J25.4-08M CoroMill™ 490 square shoulder milling cutter

R 13 742,50 inc. vat
In stock
SKU
5723384
CoroMill® 490 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 490 square shoulder milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 25.4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50mm
TQ - Torque 1.2Nm
RPMX - Rotational Speed Maximum 194001/min
WT - Weight Of Item 1.104kg
OAL - Overall Length 50mm
OHX - Maximum Overhang 50mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 0deg
GAMO - Orthogonal Rake Angle 19.9deg
LAMS - Inclination Angle 15deg
IC - Inscribed Circle Diameter 8.5mm
Insert Thickness 3.3mm
APMX - Depth Of Cut Maximum 5.5mm
DC - Cutting Diameter 80mm
DCF - Cutting Diameter Face Contact 78.4mm
GAMF - Radial Rake Angle 19.90000018deg
GAMP - Axial Rake Angle 14.99999987deg
AZ - Maximum Plunge Depth 0mm
ORDCODE A490-080J25.4-08M
ADINTMS - Adaptive Interface Machine Direction M_FDACA1_S1000_2
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 1
CHANGEDATE 2022-07-05 15:22:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MI08T3_1
Hand R
MIID - Master Insert Identification 490R-08T308
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 08
CICT - Cutting Item Count 8
ZEFP - Peripheral Effective Cutting Edge Count 8
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
